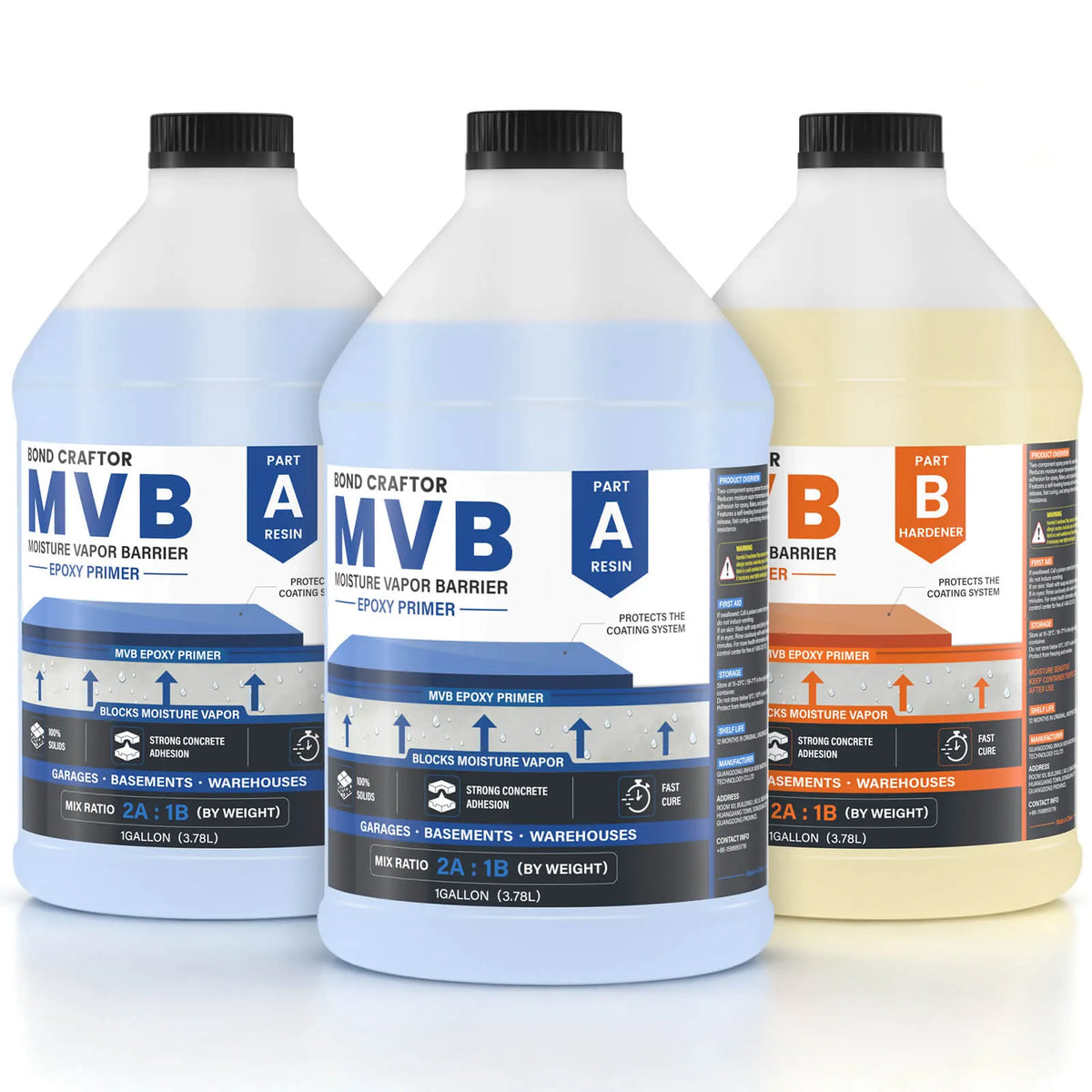

🛡️ MVB Moisture Vapor Barrier Epoxy Primer
Bond Craftor MVB is a two-component, 100% solids epoxy primer designed for properly prepared concrete surfaces. It helps reduce moisture vapor transmission through concrete, minimizing coating failures such as bubbling, peeling, and delamination.
With strong concrete adhesion and self-leveling flow, MVB forms a uniform primer layer and provides a reliable base for epoxy floor coating systems, flake, and polyaspartic coating systems.
SOLID CONTENT
100%
MIX RATIO
2A : 1B
by weight
COVERAGE
6–7 lb
per 100 sq ft
INITIAL CURE
4–6 hr
room temperature

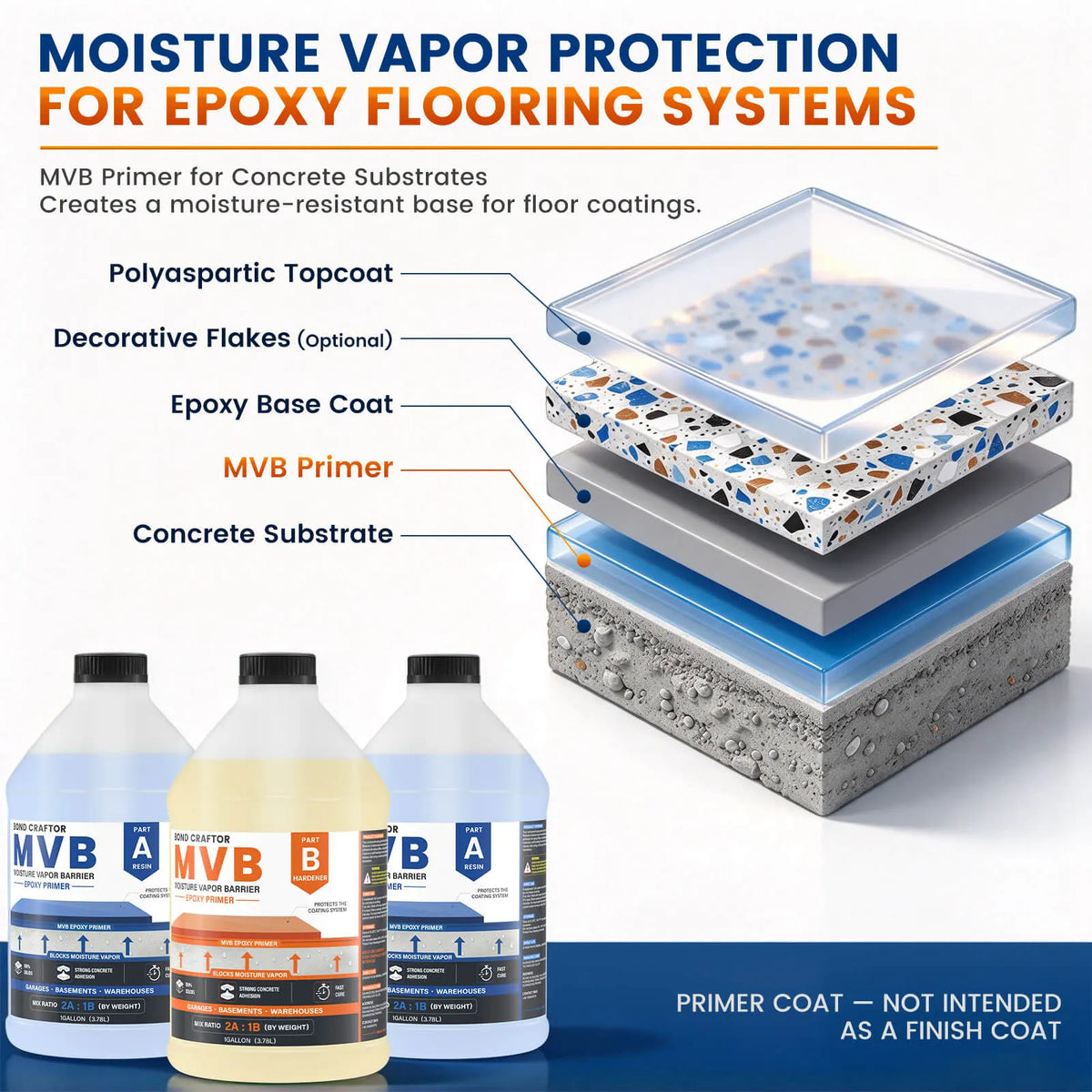

🧱 Where MVB Fits in the Floor System
STEP 1
Prepared Concrete
→
STEP 2
MVB Primer
→
STEP 3
Epoxy / Flake / Polyaspartic System
💧 Key Performance
01

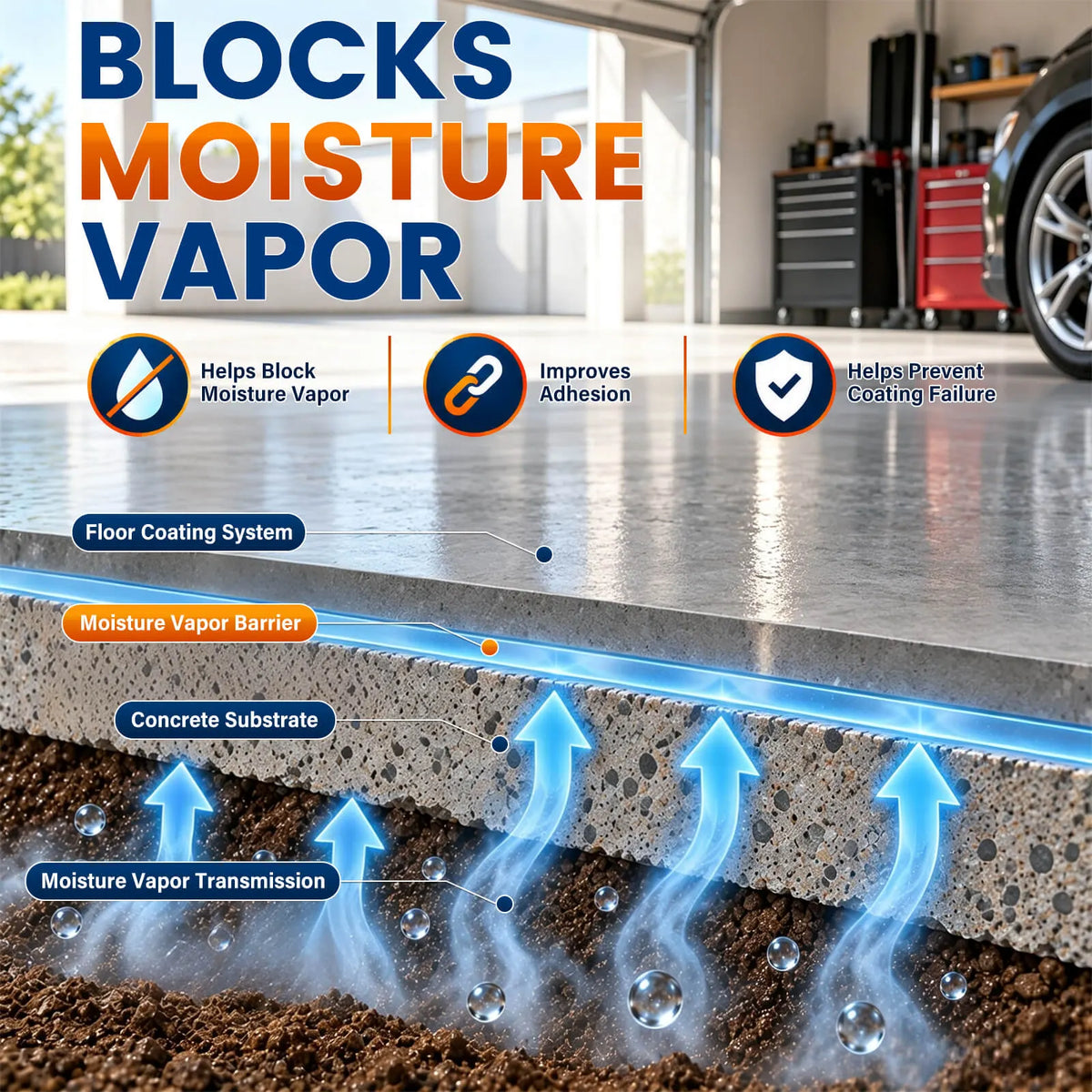

Effective Moisture Protection

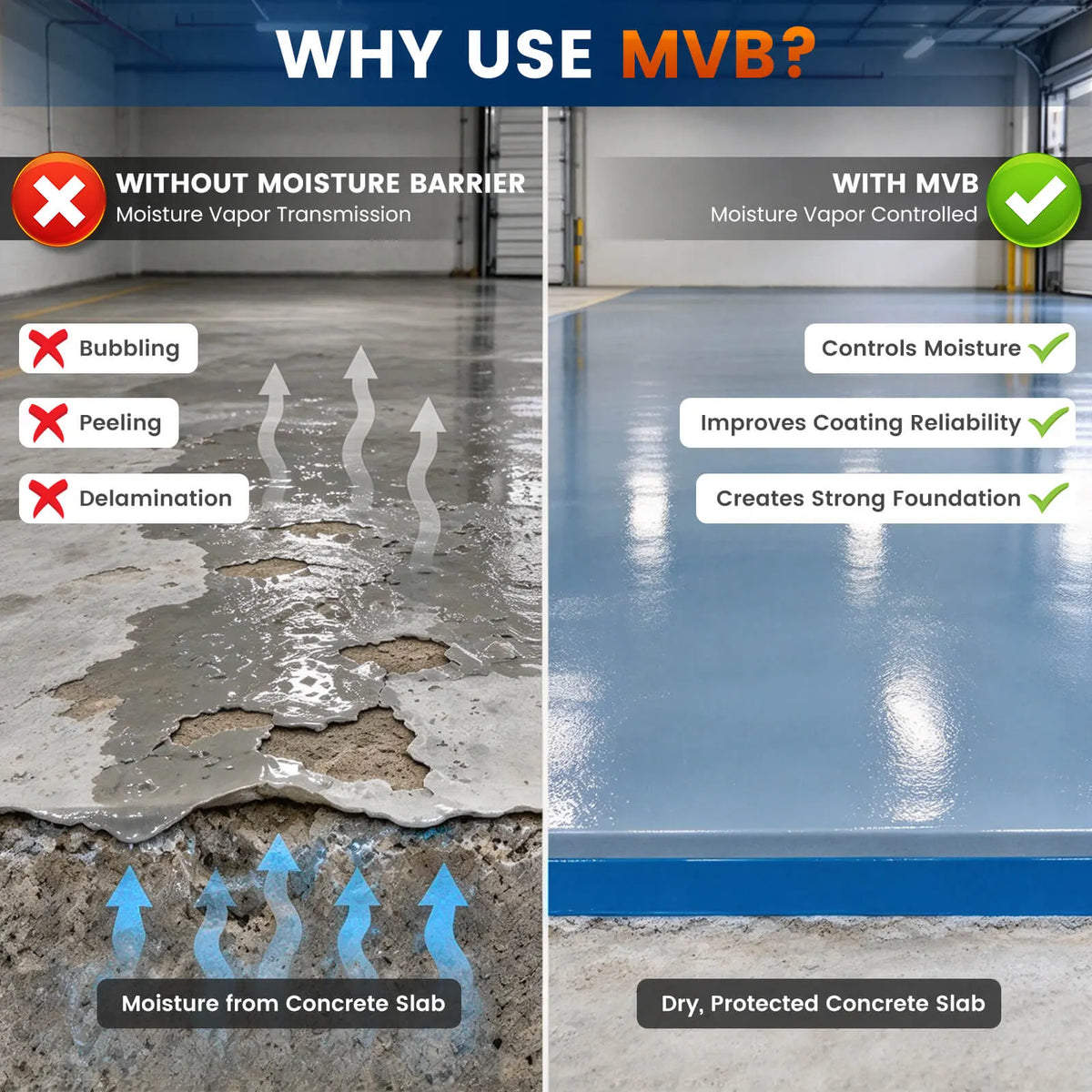

Helps reduce moisture vapor transmission through concrete, minimizing coating failures such as bubbling, peeling, and delamination.
02
100% Solids
Solvent-free formulation with minimal shrinkage, forming a dense and durable protective layer.
03
Fast Cure
Initial cure occurs in approximately 4–6 hours at 25°C, with full cure within 48 hours.
04
Strong Concrete Adhesion
Bonds firmly to properly prepared concrete, creating a reliable base for epoxy, flake, and polyaspartic coating systems.
05

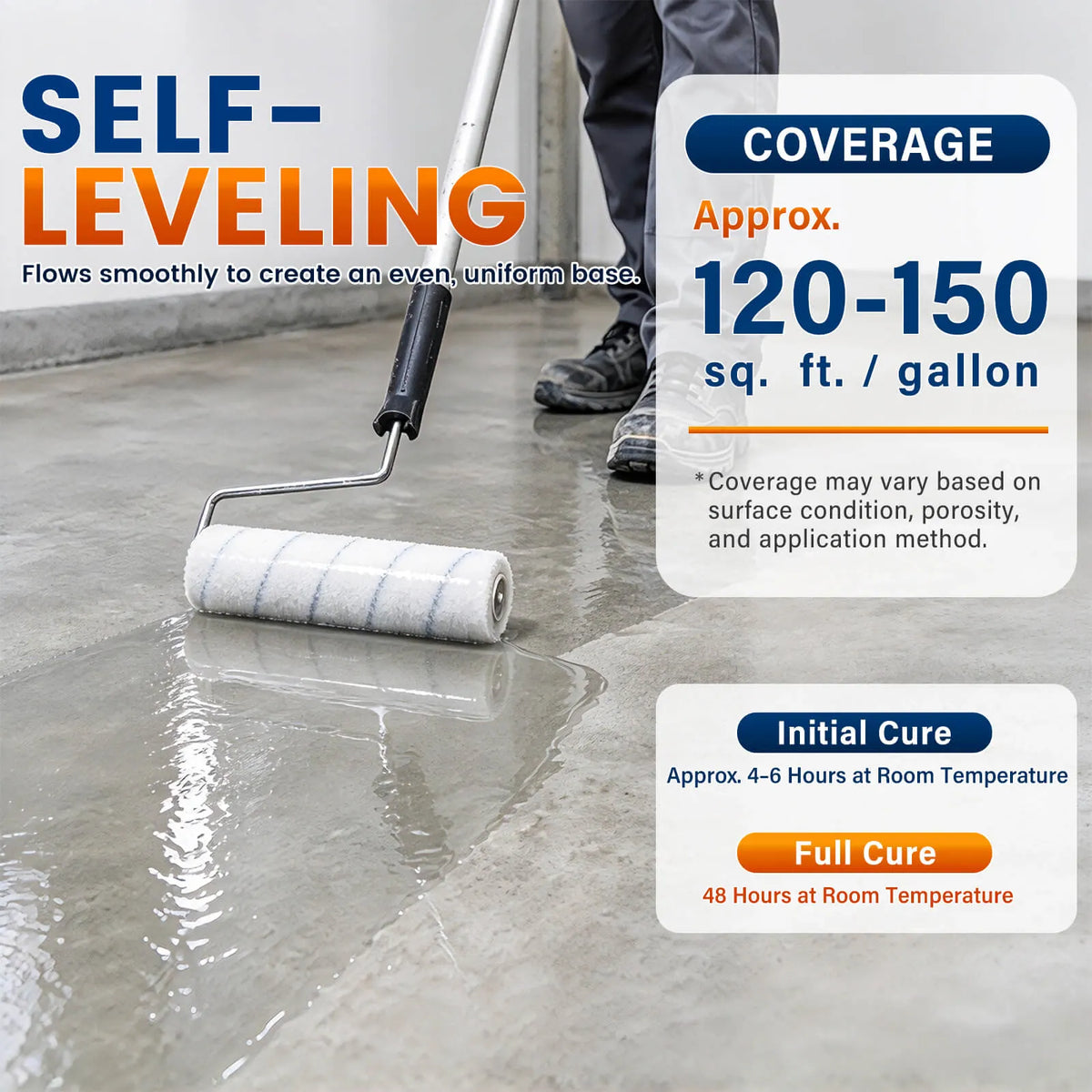

Self-Leveling
Provides smooth flow and easy application, creating a uniform primer layer.
06
Industrial-Grade Durability
Cures to form a hard, chemical- and abrasion-resistant primer layer that supports long-term performance in demanding floor coating systems.
⚙️ Technical Specifications
| Specification | Details |
|---|---|
| Component | Two-Component (A + B) |
| Appearance | Part A: Pale Blue Transparent; Part B: Light Yellow |
| Mix Ratio – Weight | 2A : 1B |
| Mix Ratio – Volume | 1.8A : 1B |
| Solid Content | 100% |
| Mix Time | 3–5 minutes |
| Density – Part A | 1.07 ± 0.05 g/cm³ |
| Density – Part B | 0.98 ± 0.03 g/cm³ |
| Working Time | 12 ± 3 min at 25°C (based on a 100 g sample) |
| Coverage | 6–7 lb / 100 sq ft (280–350 g/m²), depending on substrate condition |
| Initial Cure | 4–6 hours at room temperature |
| Full Cure | Within 48 hours at room temperature |
| Shore D Hardness | ≥60 |
| Water Absorption | <0.1% |
| Service Temperature | 50–158°F / 10–70°C |
| Heat Deflection Temperature | 158°F / 70°C |
Technical Note: Values shown are typical laboratory results measured at 25°C (77°F) and 70% relative humidity. Actual performance may vary depending on temperature, humidity, application conditions, and substrate conditions.
